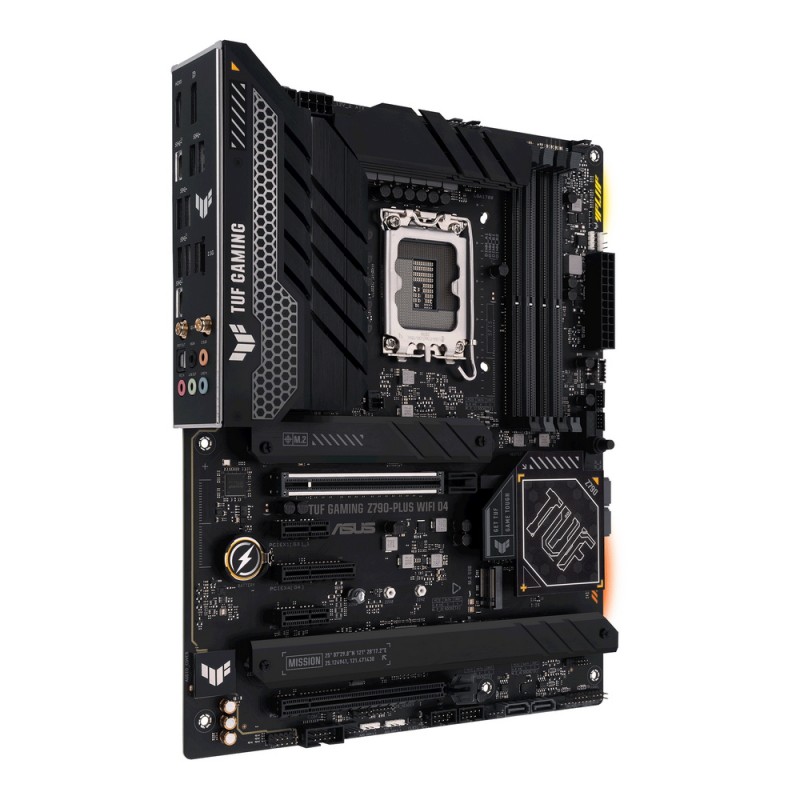

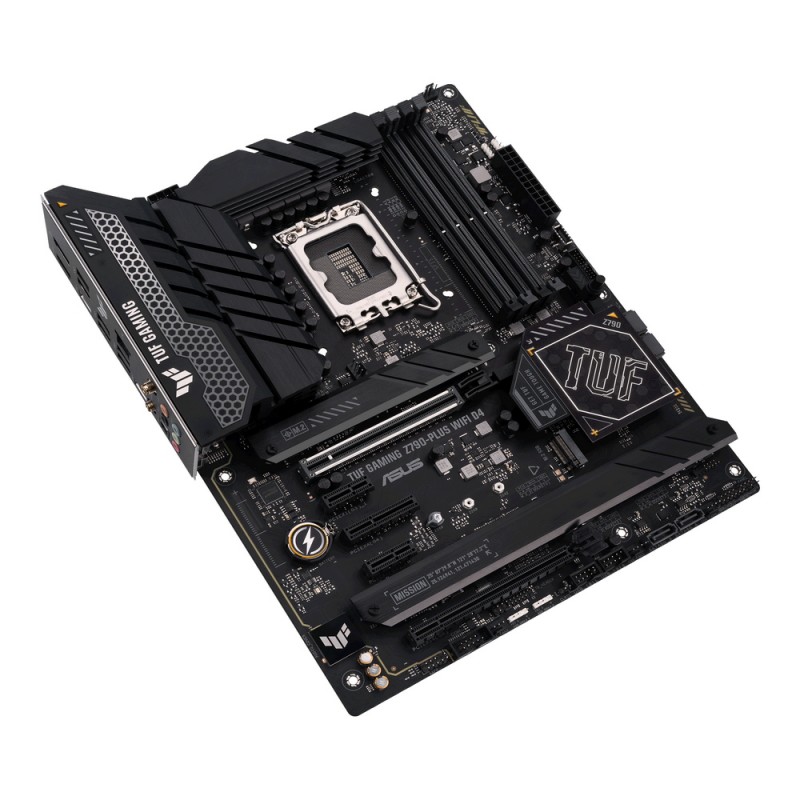

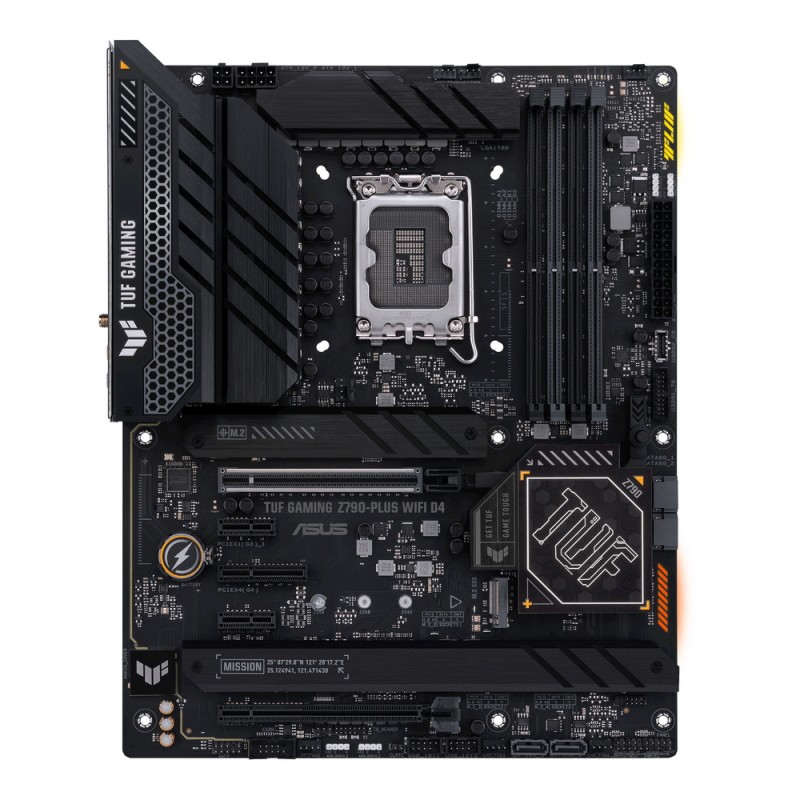

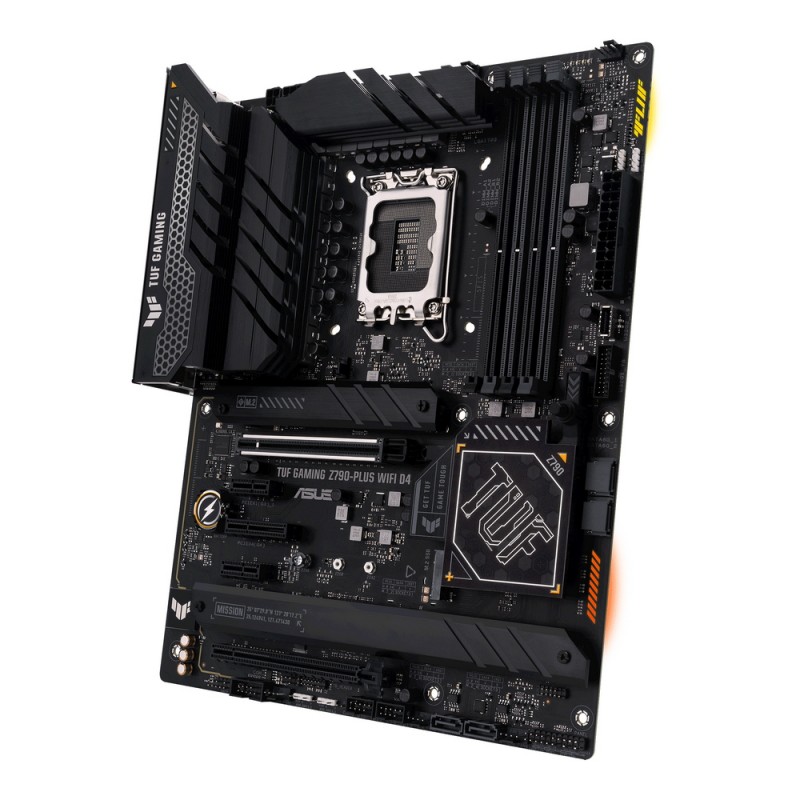

ASUS TUF GAMING Z790-PLUS WIFI D4

Слоты расширения:

• 1 × PCIe 5.0 x16 (режим x16)
• 1 × PCIe 4.0 x16 (режим x4)
• 1 × PCIe 4.0 x4
• 2 × PCIe 3.0 x1

Разъемы M.2 - 4шт:

• 1 × M.2 (CPU, PCIe 4.0 x4 для устройств формата 2242/2260/2280/22110)
• 1 × M.2 (Z790, PCIe 4.0 x4 для устройств формата 2242/2260/2280)
• 1 × M.2 (Z790, PCIe 4.0 x4 для устройств формата 2242/2260/2280/22110)
• 1 × M.2 (Z790, PCIe 4.0 x4/SATA для устройств формата 2242/2260/2280)

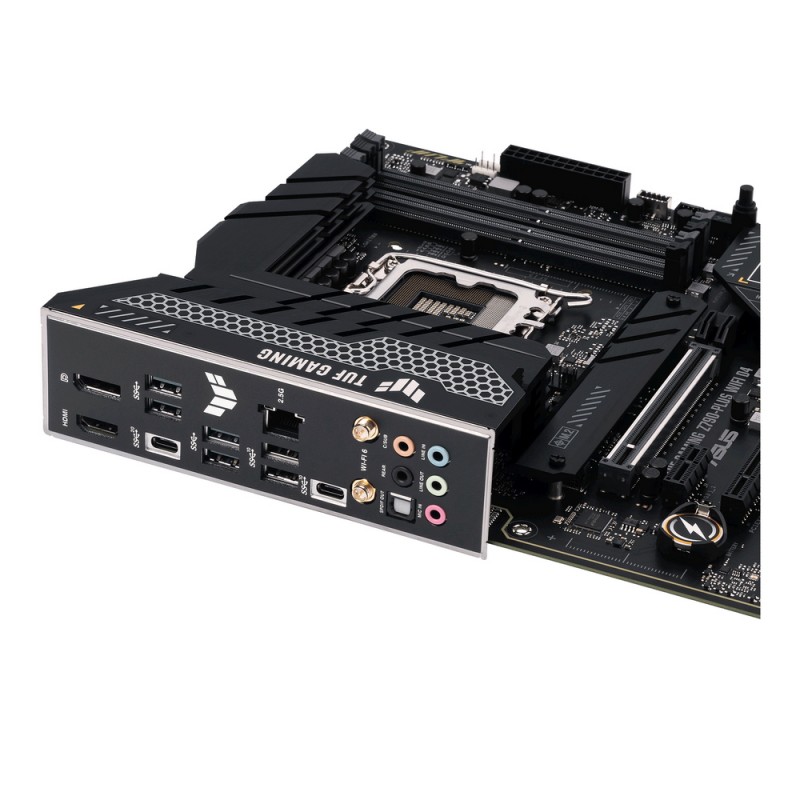

Разъемы на задней панели:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Внутренние разъёмы:

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V Power connectors
  Storage related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thunderbolt™ (USB4^®) header
